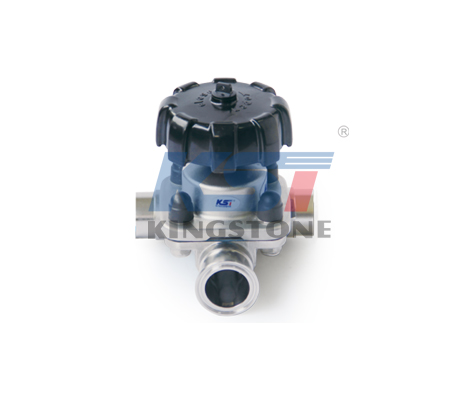

T型卫生级隔膜阀工作压力：0-10bar ；
T型卫生级隔膜阀工作温度：-40~150℃ ；
驱动机构：手动控制 ；
密封材质：EPDM,EPDM+TFM ；
阀体设计：零死角设计；
阀体材质：316L（铸造，EN1.4409 CF3M）；
接口尺寸：主通道（DN1）DN25-DN65，出料口（DN2）DN15-DN40；
接口方式：KST350-6：焊式，KST350-9：卡式 ；
表面处理：外表面Ra≤0.5μm（SF1）， 内表面Ra≤0.375μm（SF4） ；
接口标准：ISO,DIN,ASME BPE.3A,BS。
No.KST350-6
| Size | D1 | D2 | A | B | H | L | M |
| DN20-15 | 9.5 | 15.8 | 22 | 22 | 63 | 127 | M4 |
| DN25-20 | 15.8 | 22.1 | 54 | 46 | 97 | 127 | M6 |
| DN25-25 | 22.1 | 22.1 | 54 | 46 | 101 | 127 | M8 |
| DN40-20 | 15.8 | 34.8 | 54 | 46 | 104 | 146 | M6 |
| DN40-25 | 22.1 | 34.8 | 54 | 46 | 110 | 146 | M8 |
| DN40-32 | 28.5 | 34.8 | 70 | 65 | 130 | 159 | M10 |
| DN40-40 | 34.8 | 34.8 | 70 | 65 | 140 | 159 | M10 |
| DN50-20 | 15.8 | 47.5 | 54 | 46 | 115 | 146 | M6 |
| DN50-25 | 22.1 | 47.5 | 54 | 46 | 118 | 146 | M8 |
| DN50-32 | 28.5 | 47.5 | 70 | 65 | 136 | 159 | M10 |
| DN50-40 | 34.8 | 47.5 | 70 | 65 | 145 | 159 | M10 |
| DN50-50 | 47.5 | 47.5 | 82 | 78 | 155 | 190 | M12 |
| DN65-20 | 15.8 | 60.3 | 54 | 46 | 114 | 146 | M6 |
| DN65-25 | 22.1 | 60.3 | 54 | 46 | 114 | 146 | M8 |
| DN65-40 | 34.8 | 60.3 | 70 | 65 | 136 | 168 | M10 |
No.KST350-9

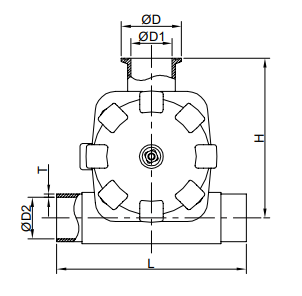

| Size | D | D1 | D2 | H | L | T |
| DN20-15 | 50.5 | 9.5 | 15.8 | 63 | 127 | 2 |
| DN25-20 | 50.5 | 15.8 | 22.1 | 97 | 127 | 2 |
| DN25-25 | 50.5 | 22.1 | 22.1 | 101 | 127 | 2 |
| DN40-20 | 50.5 | 15.8 | 34.8 | 104 | 146 | 2 |
| DN40-25 | 50.5 | 22.1 | 34.8 | 110 | 146 | 2 |
| DN40-32 | 50.5 | 28.5 | 34.8 | 130 | 159 | 2 |
| DN40-40 | 50.5 | 34.8 | 34.8 | 140 | 159 | 2 |
| DN50-20 | 50.5 | 15.8 | 47.5 | 115 | 146 | 2 |
| DN50-25 | 50.5 | 22.1 | 47.5 | 118 | 146 | 2 |
| DN50-32 | 50.5 | 28.5 | 47.5 | 136 | 159 | 2 |
| DN50-40 | 50.5 | 34.8 | 47.5 | 145 | 159 | 2 |
| DN50-50 | 64.0 | 47.5 | 47.5 | 155 | 190 | 2 |
| DN65-20 | 77.5 | 15.8 | 60.3 | 114 | 146 | 2 |
| DN65-25 | 77.5 | 22.1 | 60.3 | 114 | 146 | 2 |
| DN65-40 | 77.5 | 34.8 | 60.3 | 136 | 168 | 2 |
No.KST350-12
| Size | D | D1 | D2 | D3 | H | L |
| DN20-15 | 50.5 | 9.5 | 15.8 | 50.5 | 63 | 127 |
| DN25-20 | 50.5 | 15.8 | 22.1 | 50.5 | 97 | 127 |
| DN25-25 | 50.5 | 22.1 | 22.1 | 50.5 | 101 | 127 |
| DN40-20 | 50.5 | 15.8 | 34.8 | 50.5 | 104 | 146 |
| DN40-25 | 50.5 | 22.1 | 34.8 | 50.5 | 110 | 146 |
| DN40-32 | 50.5 | 28.5 | 34.8 | 50.5 | 130 | 159 |
| DN40-40 | 50.5 | 34.8 | 34.8 | 50.5 | 140 | 159 |
| DN50-20 | 50.5 | 15.8 | 47.5 | 50.5 | 115 | 146 |
| DN50-25 | 50.5 | 22.1 | 47.5 | 50.5 | 118 | 146 |
| DN50-32 | 50.5 | 28.5 | 47.5 | 50.5 | 136 | 159 |
| DN50-40 | 50.5 | 34.8 | 47.5 | 50.5 | 145 | 159 |
| DN50-50 | 64.0 | 47.5 | 47.5 | 64.0 | 155 | 190 |
| DN65-20 | 50.5 | 15.8 | 60.3 | 77.5 | 114 | 146 |
| DN65-25 | 50.5 | 22.1 | 60.3 | 77.5 | 114 | 146 |
| DN65-40 | 50.5 | 34.8 | 60.3 | 77.5 | 136 | 168 |
